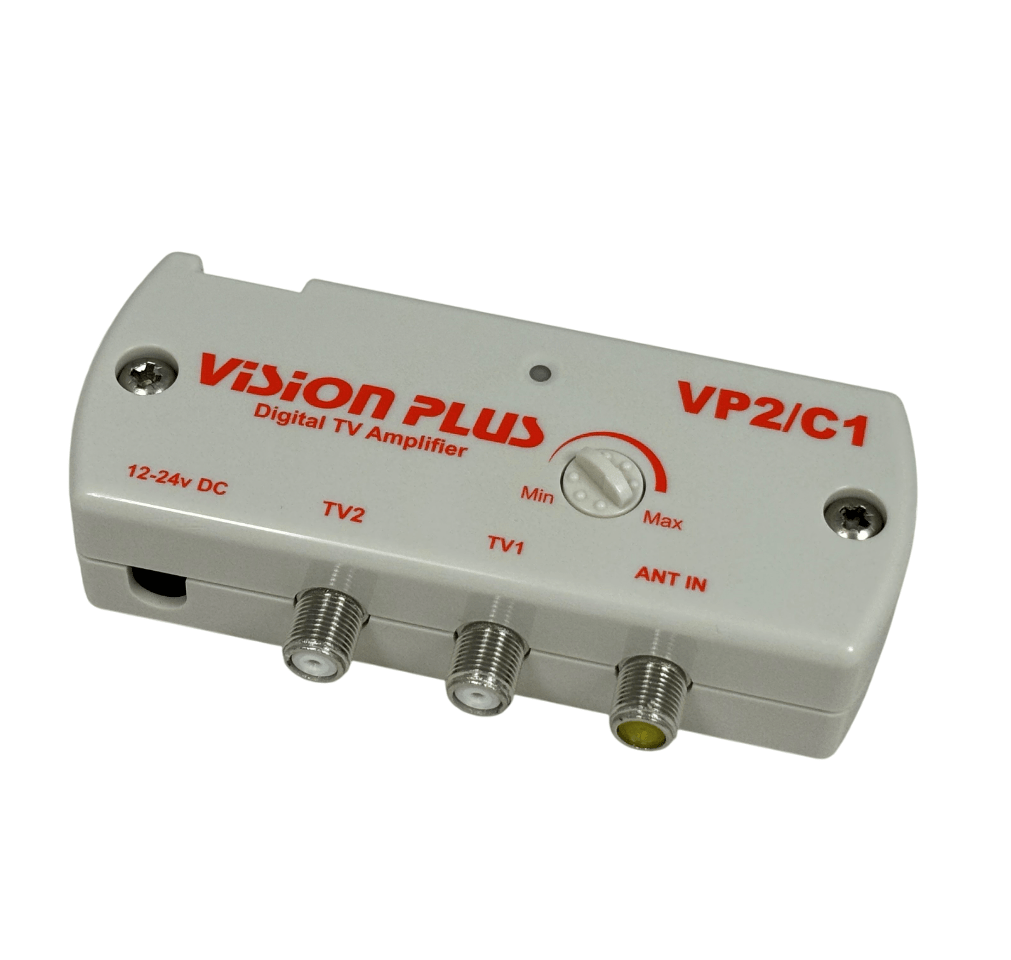

Digital TV Amplifier Class 1 VP2
Digital TV Amplifier Class 1 VP2 - Image 2

Digital TV Amplifier Class 1 VP2

£26.95

Select delivery location

Add to wishlist
SKU: 09-6005/VP2 Category:

Description

Triple Filtered Reception for Optimal Performance:

4G, 5G, and TETRA Compatibility

Elevate your reception quality with the RED Class 1, Vision Plus 2-Way Variable Gain 5-20dB TV amplifier. This CE/UKCA compliant amplifier offers exceptional performance, incorporating advanced 5G/4G LTE filtering and amplification for TV frequencies within the 21-48 band (470-694MHz). With its variable 5-20dB gain and low noise figures (<2.5dB typical), it ensures optimal signal strength and clarity. The amplifier features F-type connectors on both inputs and outputs for easy connectivity.

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

The Vision Plus VP2 Class 1 Digital Amplifier is fully wideband for terrestrial TV transmissions and is designed to be used with Vision Plus STATUS (with ORANGE logos only) and IMAGE directional and omni-directional antennas.

This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.

Specification:

*On/Off switch
*Variable gain control
*2 TV outputs

*Frequency Range UHF 470-694 MHz
*Amplifier Gain Max 20dB
*Gain Adjustment 0 to ≃ 20 dB
*Noise Figure 2.2dB
*Output Impedance 75ohms
*Signal Handling 80 dBμV
*Power Supply 10.8-28v DC
*Power Consumption 55 mA
*Dimensions 115wx46hx28d (mm)

The amplifier requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery. If wiring direct to a battery we recommend an in line fuse (max 5A) on the positive wire. If unsure please consult with a qualified installer.



EU Declaration of Conformity

Grade UK Ltd T/A Vision Plus hereby declares that the radio equipment type VP2, VP2+2, VP3, VP4 and VP5 are in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following link:  EU Declaration of Conformity



PLEASE NOTE: We no longer supply or stock the alternative 12v DC mains adapter.

Product Code 09-6005/VP2
