Vision Plus

Please Note:

Delivery lead time is 3-5 days.

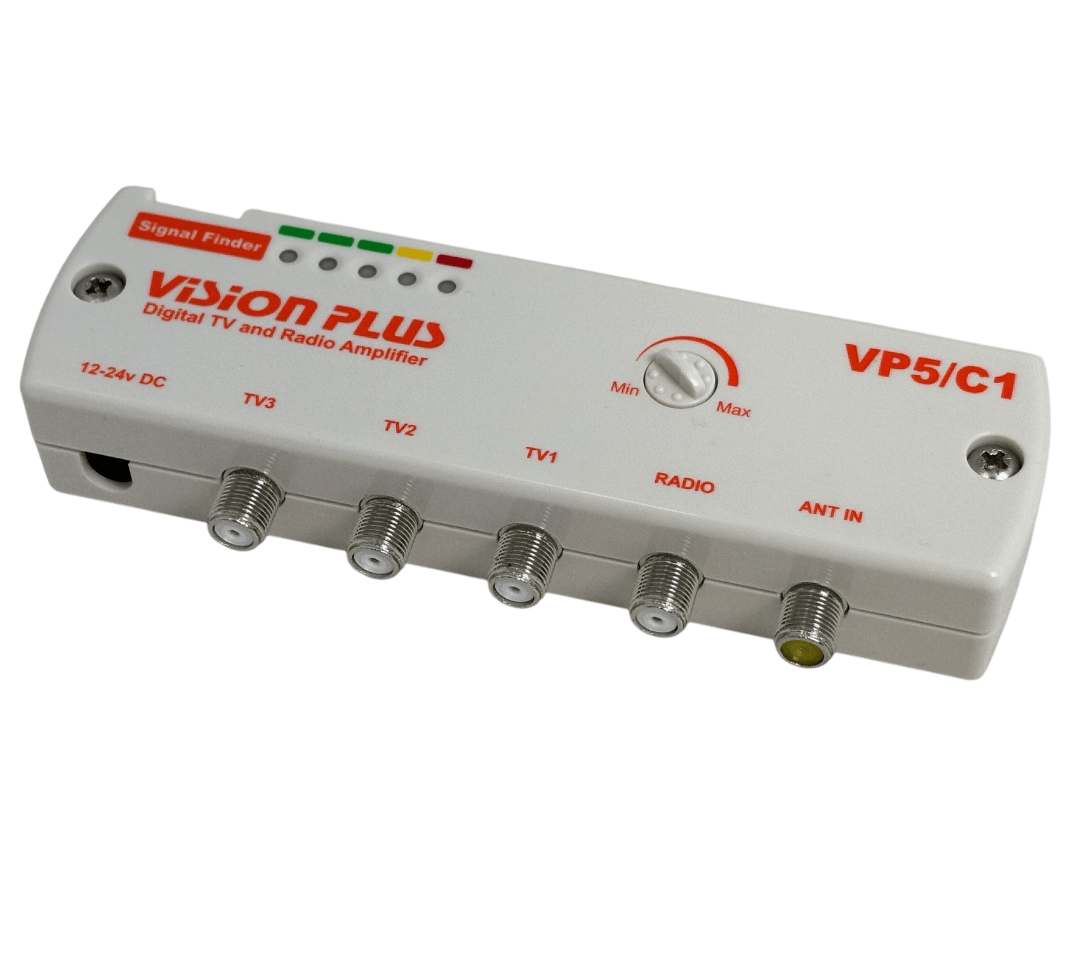

Digital TV Amplifier with Signal Finder VP5

£34.95

SKU: 09-6005/VP5 Categories: ,

Description

The Vision Plus VP5 Digital Amplifier is designed to enhance the performance of all non-amplified directional TV antennas. There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna.

This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance especially in poor reception areas.

Specification:

On/Off switch
Variable gain control
3 TV outputs
1 FM Radio output

Frequency Range UHF 470-862 MHz
Frequency Range VHF 40-230 MHz
Frequency Range FM 88-108 MHz
Amplifier Gain Max 14dB
Gain Adjustment 0 to ≃ 15 dB
Flatness +1.5dB
Noise Figure 2.2dB
Output Impedance 75ohms
Signal Handling 80 dBμV
Power Supply 10.8-28v DC
Power Consumption 95 mA
Dimensions 157wx46hx28d (mm)

The amplifier requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery. If wiring direct to a battery we recommend an in line fuse (max 5A) on the positive wire. If unsure please consult with a qualified installer.

PLEASE NOTE: We no longer supply or stock the alternative 12v DC mains adapter.

Product Code 09-6005/VP5
